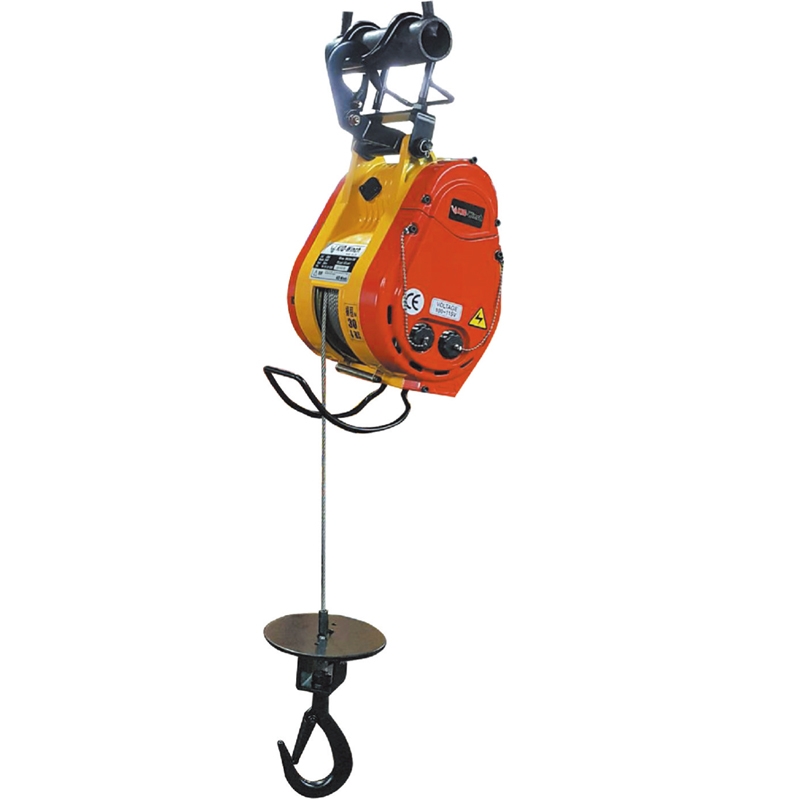

Product Name : SRT-200
Product Introduction
Features:

•Lightweight and compact design allows easy installation

•Automatic upper limit switch when rope disc touches the limit arm, hoisting is automatically stopped

•Dynamic and mechanical brake provides instant and safe braking

•Can operate on standard domestic power supply

•Sensor arm automatically stops motor if the wire rope is under-wound

•Wire rope comes with a 360 ° weight hook with safety latch

Specifications
Model SRT-200
Lifting capacity kg wire rope top layer 200
Lifting speed m/min First layer 25
Top layer 40
Motor kw × A 110V 1500×12
220V-240V 1500×6
Braking methods For motor Electromagnetic brake
For gear Mechanical brake
Lifting height m 29
Wire rope Φ mm×m 5×31
Net weight kg 16
Gross weight kg 25
