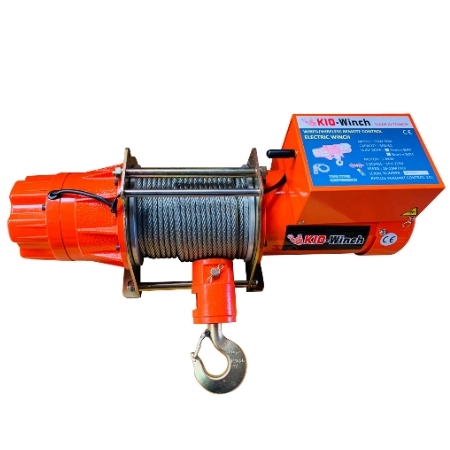

GSW-200
Product Introduction
1.Motor: AC motor for maximum torque, and it’s designed specifically for winch applications.
2.Cable: Use galvanised steel cable.
3.Control Voltage: Reduce pendant control 24V.
4.Solenoid: Equipped with magnet relay.

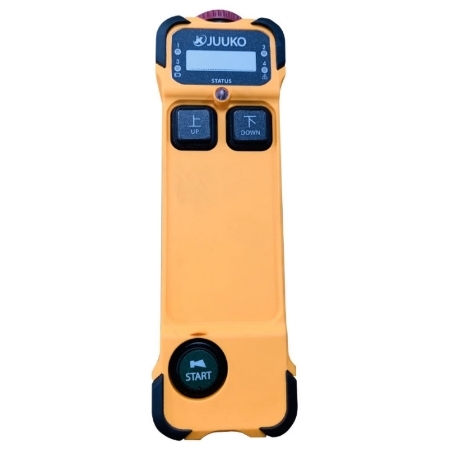

5.Control Type: Equipped with wired and wireless remote control, and safety device can make sure only one type of signals can be accepted at one time.
6.Special point: Wireless device is installed inside the machine, so it’s more convenient to use.
|

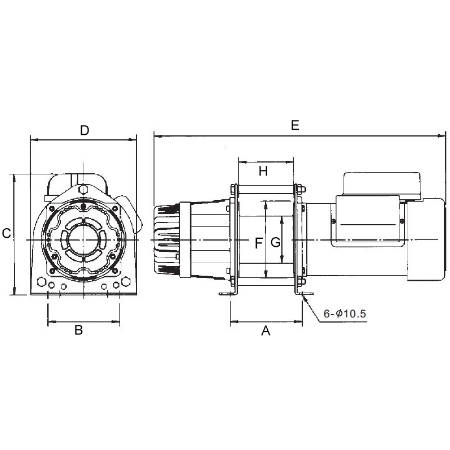

DIMENTIONS MM |
||||||||
|
MODEL |
A |
B |
C |
D |
E |
F |
G |
H |
|
GSW-200 |
155 |
152 |
290 |
210 |
535 |
Ø154 |
Ø94 |
107 |
|
MODEL |
CAPACITY (KG) |
SPEED (M/min) |
MOTOR (W) |
WIRE ROPE (Ø mm x M) |
N.W (KG) |
G.W (KG) |
|
GSW-200 |
200 |
12-18 |
600 |
6mm x 30M 5mm x 50M |
32 |
33 |
