CX-1T
Product Introduction
FEATURE:
Easy dissemble and assemble of trolley which accelerate you application speed.
The transmission gear is grinded, heat treated and pitch process to achieve silent run.
The unit and trolley are ultra slim design to rise the track to maximum height, increase the lifting distance and height.
Various type of suspension design available which can be case design for different places.
The drilling and milling processing of the unit and trolley are conducted of large lathe which ensure high precision and stability of machine.
The design of trollry and distal are triangle plate make aesthetic installation.
| SPECIFICATIONS (H) In quotes means lift measure | ||||||||||||||||||||||||||||
| Model | Capacity (ton) | Lift (M) | Hoisting Speed (m/min) | Hoisting Motor (kw) | Traversing Speed (m/min) | Traversing Motor (kw) | Chain Dia. *Pitch-No. | Control Falls Line | Control Voltage | Power Source | Standord | Min. Raidus Curvature(m) | Approx. Weight(kg) | |||||||||||||||
| 50hz | 60hz | 50hz | 60hz | 50hz | 60hz | 50hz | 60hz | |||||||||||||||||||||
| CX-1T | 1 | 3(6) | 7 | 8.4 | 1.8 | 20 | 24 | 0.17 | Φ7.1×20.2 | 1 | 24V | 3Φ 220/380/415/440V 50/60HZ | 75-225 | 1.3 | 85 | |||||||||||||

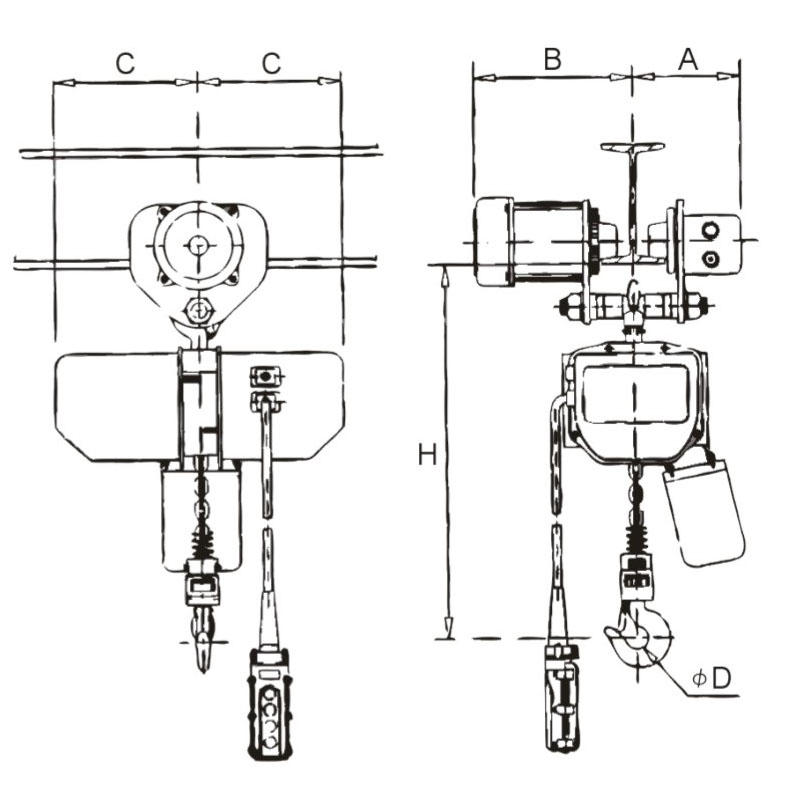

| Model | Approx Dimension (MM) | |||||||||||||||||||||||||||
| A | B | E | DΦ | I Beam (150×75×5.5) | I Beam (200×100×7) | I Beam (250×125×7.5) | I Beam (300×150×11.5) | |||||||||||||||||||||
| CX-1T | 200 | 170 | 263 | 40 | H | 613 | C | 183 | D | 253 | H | 610 | C | 195 | D | 265 | H | 608 | C | 207 | D | 277 | H | C | D | |||
