CW-500T
Product Introduction
FEATURE:
The transverse motor is equipped with high braking brake which ensure stable start and stop of motor.
The drilling and milling processing of the unit and trolley are conducted of large lathe which ensure high precision and stability of machine.
The unit and trolley are ultra slim desigh to rise the track to maximum height, increase the lifting distance and height.
The transverse motor start stably to ensure minimal wobbing of the lifted heavy subject which need protection during traveling.
The design of trolley minimize the quantity of parts for easy installing save time and keep wrong away.
The design of trolley and distal are triangle plate make aesthetic installation
| SPECIFICATIONS (H) In quotes means lift measure | ||||||||||||||||||||||||||||
| Model | Capacity (ton) | Lift (M) | Hoisting Speed (m/min) | Hoisting Motor (kw) | Traversing Speed (m/min) | Traversing Motor (kw) | Chain Dia. *Pitch-No. | Control Voltage | Power Source | Min. Raidus (m) | Approx. Weight(kg) | |||||||||||||||||
| 50hz | 60hz | 50hz | 60hz | 50hz | 60hz | 50hz | 60hz | |||||||||||||||||||||
| CW-500T | 0.5 | 3(6) | 4.8 | 6 | 0.7 | 0.75 | 20 | 24 | 0.1 | 0.12 | Φ6.3×19.1 | 24V | 3Φ 220/380/415/440V 50/60HZ | 1.2 | 49(52) | |||||||||||||

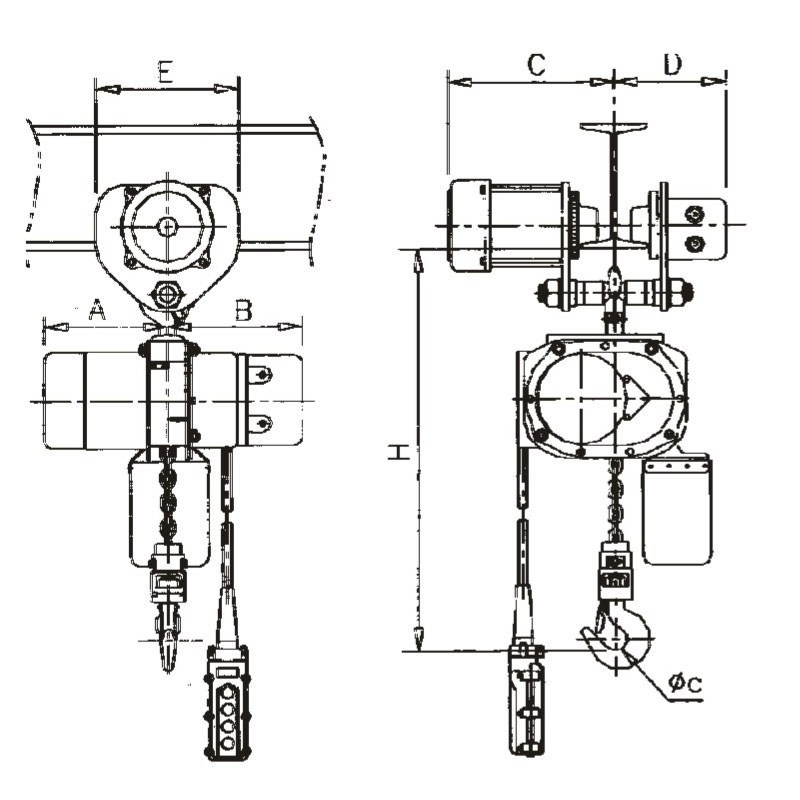

| Model | Approx Dimension (MM) | |||||||||||||||||||||||||||
| A | B | C | D | Beam (150×75×5.5) | Beam (200×100×7) | Beam (250×125×7.5) | Beam (300×150×8) | |||||||||||||||||||||
| CW-500T | 200 | 210 | 216 | 35 | H | 435 | C | 245 | D | 180 | H | 435 | C | 258 | D | 180 | H | 432 | C | 271 | D | 180 | H | C | D | |||
