Product Name : CKS-300
Product Description

220V-240V×1ph AC

Product Introduction

Features:

Lightweight and compact design for easy installation

Dynamic and mechanical brake provides instant and safe braking

Operates on standard household power supply

Enclosed drum flanges to prevents ropes becoming trapped between drum and support castings

Specifications
Capacity(kg) 300
Lifting speed m/min First layer 16
Top layer 25
Motor KW × A Type Series wound
220V-240V 2.3×11
Maximum lifting height m 29
Braking methods For motor Electromagnetic brake
For gear Mechanical brake
Wire rope Diameter mm 6
Length m 30
Drum dimension mm Width 147
Drum Dia 95
Flange Dia 190
Mounting bolt pattern mm 94×140
135×150
Net weight kg 38
Gross weight kg 40



Warning:

Winches are not to be used for the moving of persons.



Warranty:

Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase.

Wire ropes are not included under warranty.



Standard Accessories:

Wire rope 6mm × 30m

Weight hook K-14

Switch cord 0.7mm² × 3C  × 20m

Power lead 2mm² ×  3C × 60CM

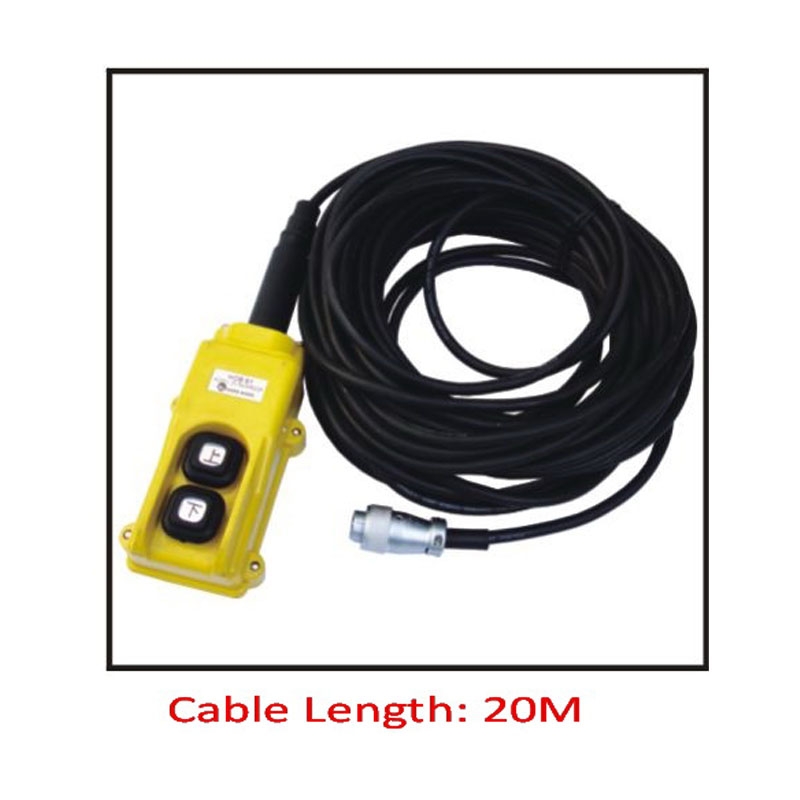

Pendant switch K-613



Optin Accessories:

Remote control K-613A assembly



DIMENSIONS MM
Model A B C D E F G H I
CKS-300 205 275 94 135 525 100 95 140 150
