Features:
•Lightweight and compact design for easy installation
•Dynamic and mechanical brake provides instant and safe braking
•Operates on standard household power supply
•Enclosed drum flanges to prevents ropes becoming trapped between drum and support castings
Specifications | ||
Capacity(kg) | 250 | |
Lifting speed m/min | First layer | 29 |
Top layer | 35 | |
Motor KW × A | Type | Series wound |
220V-240V | 2.3×11 | |
Maximum lifting height m | 39 | |
Braking methods | For motor | Electromagnetic brake |
For gear | Mechanical brake | |
Wire rope | Diameter mm | 7 |
Length m | 40 | |
Construction | 7×19 | |
Drum dimension mm | Width | 147 |
Drum Dia | 93 | |
Flange Dia | 190 | |
Mounting bolt pattern mm | 94×197 | |
135×225 | ||
Net weight kg | 30 | |
Gross weight kg | 36 |
Warning:
Winches are not to be used for the moving of persons.
Warranty:
Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase.
Wire ropes are not included under warranty.
Standard Accessories:
Wire rope 6mm × 40m
Weight hook K-14
Switch cord 2mm² × 6C × 6m
Power lead 3.5mm² × 3C × 60cm
Pendant switch K-613
Optin Accessories:
Remote control K-613A assembly

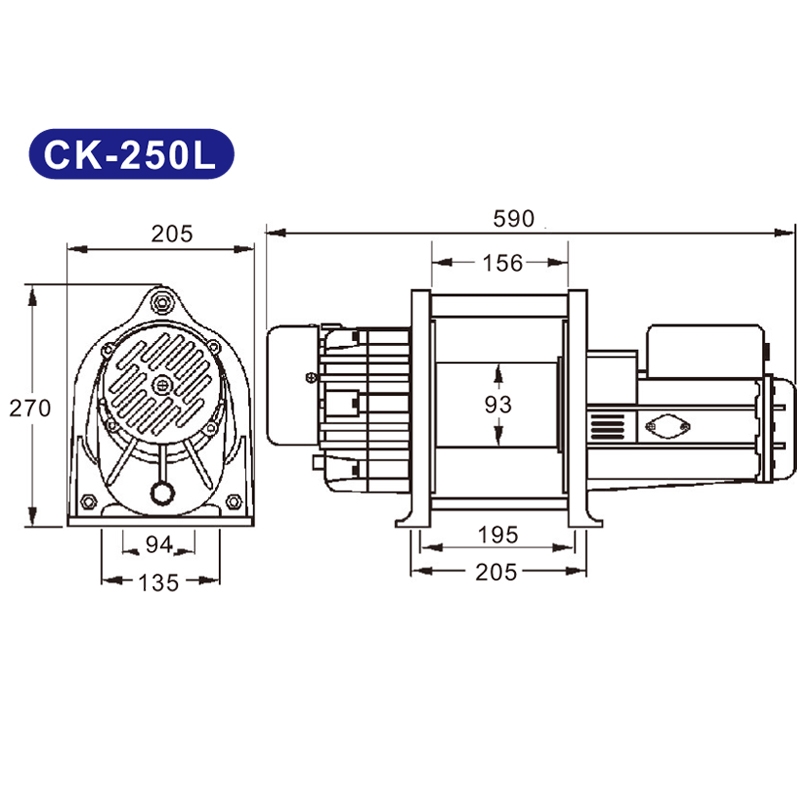

DIMENSIONS MM | |||||||||
Model | A | B | C | D | E | F | G | H | I |
CK-250L | 205 | 270 | 94 | 135 | 590 | 156 | 93 | 195 | 205 |
